Luna · iOS app

Internal UX/UI Review

Review every wireframe holistically and leave Google-Docs-style comments — pinned to the spot you mean — across each design cycle, before we export to Figma.
Open the review dashboard Design system

Screens

58 screens in review

Onboarding12 screens Apollo Training20 screens Main hubHome — daily3 screens
From Home ↓
Hypo Shield11 screens IOB Display4 screens

Onboarding

First run: meet Luna, pair your Capsule and CGM, and enter your routine.

Setup chapters (1–5) The main onboarding journey, handing off to Apollo Training.
9:41
Luna
Getting set up Chapter 1 of 5
Chapter 1 of 5

Luna takes the night watch

Before we set anything up, here's what Luna is — and what it isn't. Luna watches your glucose overnight and makes small, careful adjustments to your basal insulin so you can sleep without standing guard.

Luna watches your CGM through the night and acts while you sleep.
It makes small adjustments to your basal — gently, and starting conservatively.
It does not dose your mealtime insulin, and it does not run during the day.
You stay in control. Luna only keeps watch — you can always see what it did.

We'll set this up together, in order — pair your Luna Capsule, pair your CGM, and tell Luna your current routine. It only takes a few minutes.

Chapter 1 — What Luna is
9:41
Luna
Getting set up Chapter 2 of 5
Chapter 2 of 5

Tell Luna your routine

Luna needs to know the basal routine you're on today so it can protect it overnight. Enter your total daily basal dose (TDBD) exactly as your clinician prescribed it — this is just what you take now, not a change.

Total daily basal dose (TDBD), as prescribed
24 units / day

Your long-acting (basal) insulin total per day. Mealtime/bolus insulin isn't entered here — Luna doesn't touch it.

 Chapter 2 — Tell Luna your routine (TDBD capture)
9:41
Luna
Getting set up Chapter 3 of 5
Chapter 3 of 5

Pair your Luna Capsule

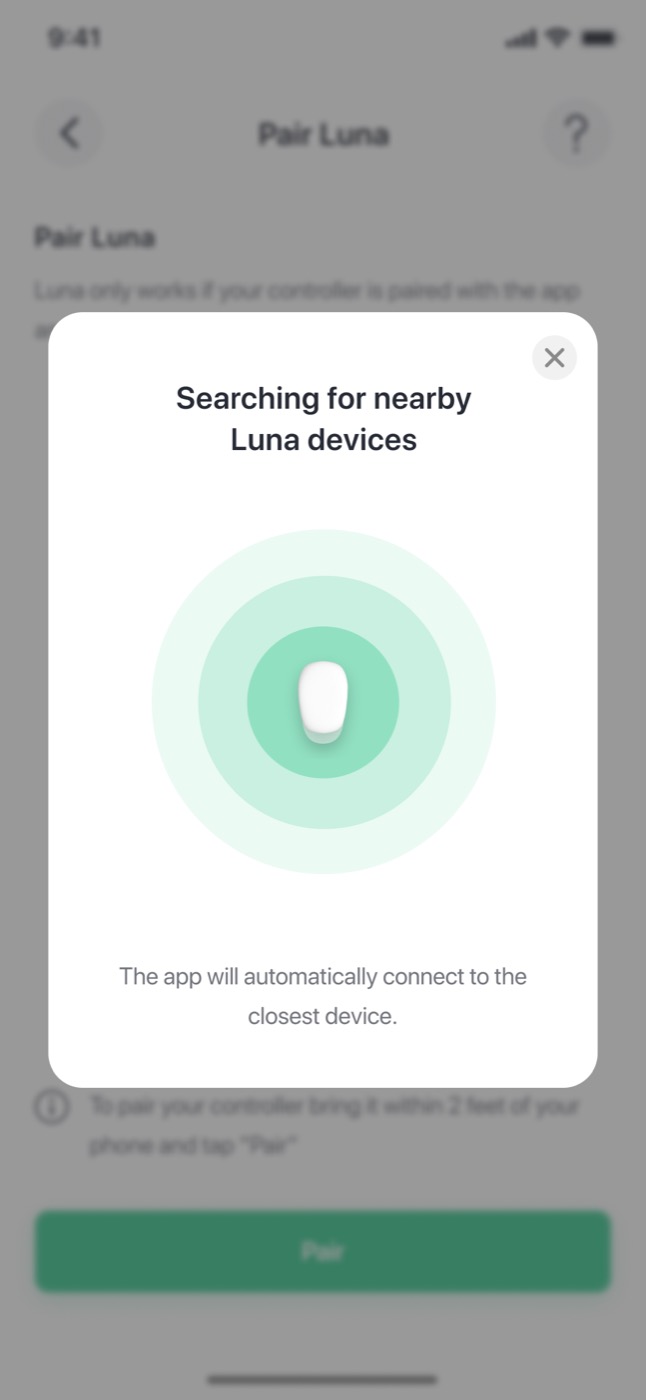

Hold your Luna Capsule near your phone. Luna pairs over Bluetooth — keep them close while it connects.

Bluetooth · Searching

Looking for your Luna Capsule…

Your first night 1 of 3 ready
Pair your Luna Capsule
Pair your CGM sensor Next
Enter your TDBD
Chapter 3 — Pair Luna Capsule (BLE)
9:41
Luna
Getting set up Chapter 4 of 5
Chapter 4 of 5

Pair your CGM

Luna reads your glucose from your Dexcom G7. Connect it so Luna can watch your readings overnight.

Dexcom G7 Recent reading OK
Your first night 2 of 3 ready
Pair your Luna Capsule
Pair your CGM sensor
Enter your TDBD Next
Chapter 4 — Pair CGM (Dexcom G7)
9:41
Luna
Getting set up Chapter 5 of 5
Chapter 5 of 5

You're set up

Your first night is ready. Next, a coordinator walks you through setting up your device tonight — Luna Training picks up right here.

Your first night 3 of 3 ready
Pair your Luna Capsule
Pair your CGM sensor
Enter your TDBD
Up next · Luna Training
1 A coordinator confirms your setup and answers any questions.
2 You'll walk through tonight's evening setup, step by step.
Chapter 5 — Handoff to Apollo Training
Setup states & first-run education Landing states, routine capture, app/UI walkthroughs, and device management.
9:41
Luna
Setup
Setup

Finish your setup

Pick up where you left off. Luna needs all three before your first night.

No devices paired yet — start by pairing your Luna Capsule.

Your first night0 of 3 ready
Pair your Luna CapsuleNext
Pair your CGM sensor
Enter your TDBD
Your first night1 of 3 ready
Pair your Luna Capsule
Pair your CGM sensorNext
Enter your TDBD
Your first night3 of 3 ready
Pair your Luna Capsule
Pair your CGM sensor
Enter your TDBD
 Setup Landing (none / Luna complete / all)
9:41
Luna
Your routine 2 of 3
Your routine · 2 of 3

Your long-acting insulin

Enter the long-acting (basal) insulin dose you take now, exactly as your clinician prescribed it. This is just what you're already on — not a change.

Long-acting insulin dose, as prescribed
14 units / day

Your once-daily long-acting insulin. Mealtime/bolus insulin isn't entered here — Luna doesn't touch it.

 Long-acting insulin (plain capture)
9:41
Luna
Quick tour Step 1 of 5
Quick tour · 1 of 5

This is your night view

Each morning you'll open here. The big number is your glucose; the graph shows your night and the small marks show when Luna acted.

112 mg/dL

Steady overnight · Luna made 3 small adjustments

After the tour, your coordinator picks up right here to set up your device for tonight — it's all one walkthrough.
UI Walkthrough (1 of 5)
9:41
Luna
App walkthrough Step 1 of 5
App walkthrough · 1 of 5

A quick tour of the app

Five short stops so you know your way around before tonight. We'll start at the top of your home screen — the status strip that tells you Luna is working.

Automating System Full Reservoir 86% Battery
This strip leads your home screen. A glance tells you Luna is automating, your reservoir is filled, and the controller is charged.
5 quick stops, then Done
 Setup App Walkthrough (1–5 + Done)
9:41
Luna
Session History 1 of 4
Session History · 1 of 4

Every night, summed up

After your first night, this is where each session lands — time in range, total insulin Luna delivered, and your highs and lows. Nothing's here yet; tonight fills it in.

In range80% Insulin delivered5.0 U Lowest78

Example · your first session will look like this

Open any night to see its glucose graph and the moments Luna delivered insulin while you slept.
Session History Intro (first-run, 1–4)
9:41
Luna
Tonight panel · states

Review aid — the recurring panel filling across the arc. Order is locked: pair Luna Capsule → pair CGM → enter TDBD.

State 0 · Nothing paired
Your first night0 of 3 ready
Pair your Luna Capsule Next
Pair your CGM sensor
Enter your TDBD
State 1 · Luna Capsule paired
Your first night1 of 3 ready
Pair your Luna Capsule
Pair your CGM sensor Next
Enter your TDBD
State 2 · CGM paired
Your first night2 of 3 ready
Pair your Luna Capsule
Pair your CGM sensor
Enter your TDBD Next
State 3 · TDBD entered · complete
Your first night3 of 3 ready
Pair your Luna Capsule
Pair your CGM sensor
Enter your TDBD
Tonight Panel — fill states across the arc
9:41
Luna

Luna Controller

Luna Controller
Connected
Your Luna Controller is paired and ready. It manages your insulin overnight and pairs to your phone over Bluetooth.
Device
Battery86%
ReservoirFull
Firmware1.4.2
SerialLC-7F3A
Paired CGM
CGMRecent reading OK
Manage
Rename controller
Forget this controller
 Settings — Luna Controller (device management)

Apollo Training

Learn to place and remove the device — evening setup, then morning removal.

Evening setup Intro → 7 steps → hardware checkpoint → personal video → overnight hand-off.
9:41
Luna
First session setup

Let's get you ready for tonight

A short walk through each step. Five minutes, and Luna is ready for the night.

 Intro — first session setup
9:41
Luna
Evening setup Step 1 of 7
still: Step 01 — poster TBD Auto-loops
Step 01

Gather what you'll need

1Your rapid-acting insulin pen
2Single-Sleep Reservoir
3Luna Capsule (charged)
 Step 01 — Inventory
9:41
Luna
Evening setup Step 2 of 7
still: Step 02 — poster TBD Auto-loops
Step 02

Open the reservoir tray

Lift the lid until it clicks. You'll load the reservoir next.

Openposter TBD — SOONA mapping
 Step 02 — Open tray
9:41
Luna
Evening setup Step 3 of 7
Filling the reservoir with insulin
asset: Cam+A-7 Auto-loops
Step 03

Fill the reservoir

Dial [X] units, then press the plunger until it stops.

Flagdose value [X] — pending Eng/Clinical
 Step 03 — Fill reservoir
9:41
Luna
Evening setup Step 4 of 7
Removing the label from the reservoir
asset: Cam+A-3 Auto-loops
Step 04

Remove the label from the reservoir

Peel the label fully away so the reservoir seats cleanly.

 Step 04 — Remove label
9:41
Luna
Evening setup Step 5 of 7
Attaching the Luna Capsule to the reservoir
asset: Cam+A-10 Auto-loops
Step 05

Snap the controller on

Attach the Luna Capsule and lift straight up to remove the adhesive liner.

 Step 05 — Attach capsule
9:41
Luna
Evening setup Step 6 of 7
still: Step 06 — poster TBD Auto-loops
Step 06

Lift it off the base

Detach the assembled device from its base. It's ready to apply.

Openposter TBD — SOONA mapping
 Step 06 — Remove from base
9:41
Luna
Evening setup Step 7 of 7
Applying the device to your upper arm
asset: Cam+A-32 Auto-loops
Step 07

Apply it to your upper arm

Press firmly on your upper arm for a few seconds.

 Step 07 — Apply to body
9:41
Luna
Hardware checkpoint
Device connected

Luna can see your controller and sensor. You're ready to start your first session.

Luna Controller Connected
Your CGM sensor Recent reading OK
Openverify-before-body order Openerror states — Eng/Clinical
Hardware Checkpoint
9:41
Luna
Hardware checkpoint
Device connected

Luna can see your controller and sensor. You're ready to start your first session.

Luna Controller Connected
Your CGM sensor Recent reading OK
Openverify-before-body order Openerror states — Eng/Clinical
Hardware checkpoint
11:22
Luna
video: Personal · Tonight — poster TBD Auto-loops
Personal video · Tonight

You're all set for tonight.

Here's a quick note on what to expect on your first night with Luna — how it feels, what the alerts sound like, and what to do if anything surprises you.

 Evening outro — personal video
11:23
Luna
Active session

Luna is watching over you.

11:23 PM
Session started

Rest easy. Luna will manage your insulin overnight. A summary will be waiting in the morning.

Put the phone down. The session continues without you.
A notification will arrive in the morning.

 Overnight handoff — Luna active
Morning removal & re-entry Morning start → 3 removal steps → outro → complete, plus resume & replay.
7:12
Luna
Morning · session start
Good morning

Good morning.

Time to remove the device and place the controller on its charger for tonight.

 Morning start
9:41
Luna
Morning removal Step 1 of 3
video: Step 08 — poster TBD Auto-loops
Step 08

Good morning. Time to remove it.

Before your next meal, gently remove Luna from your body.

Openposter TBD — SOONA mapping
 Step 08 — Remove device
9:41
Luna
Morning removal Step 2 of 3
video: Step 09 — poster TBD Auto-loops
Step 09

Detach the reservoir

Peel the tab, then press the release button.

Openposter TBD — SOONA mapping
Reservoir detach Recent reading OK
Step 09 — Detach reservoir
9:41
Luna
Morning removal Step 3 of 3
Placing the controller on its charger
asset: Cam+A-30 Auto-loops
Step 10

Place it on the charger

Set the controller on its charger so it's ready for tonight.

Controller charging Connected
Step 10 — Charge controller
7:16
Luna
video: Personal · Week of learning — poster TBD Auto-loops
Personal video · The week ahead

Nice work — your morning's complete.

Over the next week, Luna is learning your patterns. A quick note on what we'll be watching for, what you'll see in the app, and when to check in.

 Morning outro — personal video
7:18
Luna

You're all set.

Luna is ready for tonight. From here, it's just the evening steps — you'll know them by heart.

10
Steps done
1
Night logged
 Complete
7:08
Luna
Morning removal · Step 1 of 3 1 of 3
Good morning

Resume your morning steps

Luna paused overnight and is done watching. You left off after last night's setup — pick up at the first morning step. Nothing's mid-way.

You always come back at the start of a step — never halfway through one — so it's easy to find your place.
Mid-session resume — clean step boundary
9:41
Luna

Training Guide

Replay any training step or module any time after setup. Nothing here changes your device — it's just the walkthrough.
Evening setup
Replay evening setupAll 7 evening steps Replay
Step 01 · InventoryGather what you'll need Replay
Step 03 · Fill reservoirDial and fill the reservoir Replay
Step 07 · Apply to bodyPlace the device on your arm Replay
Morning removal
Replay morning removalAll 3 morning steps Replay
Step 08 · Remove deviceTake it off before your meal Replay
Step 10 · Charge controllerSet it on the charger for tonight Replay
Replay from Settings — Training Guide (BR-B6)

Home — dailymain hub

The hub you live in: tonight's glucose, session history, and settings.

The daily hub Home dashboard ⇄ Session History ⇄ Settings, via the tab bar.
9:41
Luna
SystemAutomating
ReservoirFull
Battery86%
112
mg/dL · steady
400 300 200 100 0 70 low
10 PM11 PM12 AM1 AM2 AM3 AM4 AM
= Luna delivered insulin
Steady night. Your glucose held in range and Luna made a few small adjustments while you slept.
Home Dashboard
9:41
Luna
Session History
Thursday, May 22 · overnight
80% in range
Total insulin delivered
5.0 U
Highest glucose
178 mg/dL
Lowest glucose
94 mg/dL
10 PM1 AM4 AM7 AM
0.1 U on board at wake
May 2021
5/26 – 5/27
5.0 U delivered · 80% in range
5/25 – 5/26
5.0 U delivered · 80% in range
5/24 – 5/25
3.0 U delivered · 80% in range
 Session History
9:41
Luna

Settings

Hypo Shield
Hypo Shield Active
IOB Display
Devices
CGM Recent reading OK
Luna Controller Connected
Support
Help
Settings

Hypo Shield

Overnight basal guidance — surface a recommendation, confirm it safely, manage it.

Recommend → confirm → manage Resting tip, learning, recommendation & announcement, the two-step confirm and its variants, settings & TDBD detail.
9:41
Luna
SystemAutomating
ReservoirFull
Battery86%
112
mg/dL · steady
400 300 200 100 0 70 low
10 PM11 PM12 AM1 AM2 AM3 AM4 AM
= Luna delivered insulin
Hypo Shield
Your nightly basal looks well-matched. Luna is watching and will tell you if it should change.
 Home — Default Tip
9:41
Luna
SystemAutomating
ReservoirFull
Battery86%
108
mg/dL · steady
Hypo Shield · Learning
Luna is learning your nights
Before Luna suggests a basal change, it learns your overnight needs. This takes both 5 Luna sessions and 7 days of wear. While it learns, dosing stays a little more conservative.
Luna sessions3 of 5
AND
Days of wear4 of 7
Dosing modeEstablishing baseline Next: compensating upward or downward once learned
Learning State & Dosing Mode
9:41
Luna
SystemAutomating
ReservoirFull
Battery86%
118
mg/dL · drifting up overnight
400 300 200 100 0 70 low
10 PM11 PM12 AM1 AM2 AM3 AM4 AM
= Luna delivered insulin
Hypo Shield · Recommendation
A new nightly basal dose is ready for you to review
14U Increase
Your overnight glucose has been drifting up — Luna suggests a bit more of your long-acting basal.
This is a suggestion only — nothing changes until you review and confirm.
Home — Tip Post (recommendation)
2:14
Luna
 Mid-Session Dose Announcement
10:18
Luna
Tuesday, May 26
10:18
Prompt-to-open only. No dose value and no confirmable action on the lock screen. Tapping the banner opens the app, where the in-app recommendation flow handles review and the two-step confirm.
Tap to open Luna
Push notification — prompt-to-open only
10:18
Luna
Hypo Shield

A new nightly basal dose

14 U Increase
Current dose 12 U

Over the past several nights, Luna Eclipse has been monitoring your glucose. We've noticed it's drifted up — you may need a bit more of your basal insulin.

To act on this, do both
Slide to confirm both
Acknowledge both actions above to continue
 Dose Confirmation
10:18
Luna
Hypo Shield

A new nightly basal dose

14 U Increase
Current dose 12 U

Over the past several nights, Luna Eclipse has been monitoring your glucose. We've noticed it's drifted up — you may need a bit more of your basal insulin.

To act on this, do both
Slide to confirm both
Acknowledge both actions above to continue
 Confirm Amount — Increase (two-part)
9:41
Luna
Hypo Shield · Reset Required

Luna is re-learning your nights

You changed your basal dose manually, so Hypo Shield reset its learning. It won't suggest a new dose until it has re-learned.
Now learning around 12U

Your current basal stays exactly as you set it. Luna keeps watching and will only suggest a change once it has learned again from both five sessions and seven days of wear.

Re-learning progress
Luna sessions1 of 5
AND
Days of wear2 of 7
 Confirm Amount — Reset Required
10:18
Luna
Hypo Shield · Skip

Skip this recommendation?

Your basal stays at 12U
Nothing changes

If you skip, Luna doesn't update your setting and you don't take a new dose. Your current basal stays exactly as it is.

Luna found your basal looks mis-set. Skipping means you may keep waking outside range until you act on a future recommendation.
This recommendation isn't lost. You can find it any time under Settings · Hypo Shield.
Confirm Skip (decline / defer)
9:41
Luna

Hypo Shield

Hypo Shield
Active
Hypo Shield learns your overnight basal needs and suggests a corrected dose when your standing basal looks mis-set. It never changes your dose for you.
Always on for your study
A product-level disable exists for T2D basal-only users; it isn't a setting you control in the pivotal.
Last recommendation
New basal · 14 U May 26 · 10:18 PM Skipped
New basal · 14 U May 24 · 9:32 AM Applied
Dosing
Total daily basal (TDBD) 12 U
Learning & history 5 sessions · 7 days
Support
How Hypo Shield works
Settings — Hypo Shield
9:41
Luna

Your basal

Programmed now
12U
Total daily basal Luna is automating around. You set this — Luna never changes it for you.
Learning
Luna sessions 5 of 5
Days of wear 7 of 7
Learned · Hypo Shield can now recommend
History
May
26 Recommended 14 U Drifted up · you declined Skipped
May
24 Changed to 12 U Recommendation applied Applied
May
19 Manual change to 10 U Learning reset, then re-learned Reset
May
12 Started at 10 U Your starting basal at setup Set
TDBD Detail (current value, learning, history)

IOB Display

See how much Luna-delivered insulin is still active (opt-in).

Opt in → see it → manage Pre-session announcement → opted-in Home → session detail → settings toggle.
10:18
Luna
IOB Display · Insight

Turn on insulin on board?

Luna can show your insulin on board (IOB) — how much of your Luna-delivered insulin is still active — during a session and as a residual amount after. It's decision support to help you avoid stacking. Luna won't recommend, change, or deliver a dose based on it.

Before you turn it on, confirm you understand
Slide to turn on
Acknowledge both points above to continue
 Pre-session IOB announcement
9:41
Luna
SystemAutomating
ReservoirFull
Battery86%
112
mg/dL · steady
400 300 200 100 0 70 low
10 PM11 PM12 AM1 AM2 AM3 AM4 AM
= Luna delivered insulin
Steady night. Your glucose held in range and Luna made a few small adjustments while you slept.
Active insulin · Luna From Luna-delivered insulin only 0.4 U
Home dashboard — IOB Display enabled
9:41
Luna
May 22 → 23
Overnight session · 10:42 PM – 6:58 AM
Thursday, May 22 · overnight
80% in range
Total insulin delivered
5.0 U
Highest glucose
178 mg/dL
Lowest glucose
94 mg/dL
10 PM1 AM4 AM7 AM
0.1 U on board at wake
Residual insulin on board 0.1U
From your Luna-delivered insulin only. Still active at wake and clearing — shown so you can avoid stacking a manual dose on top of it.
 Session History detail — residual Luna IOB
9:41
Luna
IOB Display
Display
Show insulin on board Off by default. When on, your Home screen shows your active Luna insulin.
What this shows

Insulin on board (IOB) is how much of your Luna-delivered insulin is still active in your body. Seeing it can help you avoid stacking — taking more insulin on top of insulin that's still working.

Shows during an active Luna session, then carries the residual amount after the session ends until that insulin clears — e.g. 0.4 U.
Counts Luna-delivered insulin only — not insulin you deliver outside Luna.
This is information to help you decide. Luna won't recommend, change, or deliver a dose based on it.
Settings — IOB Display toggle (default OFF)

Reference

BRDs & program docs

Each screen's detail page links its feature BRD. The full set lives on Google Drive:

BRD · Hypo Shield & In-App Comms Hypo Shield & In-App Comms — Business Requirements (BRD) BRD · IOB Display IOB Display — Business Requirements (BRD) BRD · Onboarding Update Onboarding Update — Business Requirements (BRD) BRD · Training Update Apollo Apollo Training — Business Requirements (BRD) BRD · Dark UI re-skin Dark UI — Business Requirements (BRD) Reference Luna App Map — Screen Inventory (T1 Pivotal) Every screen × Status (New/Changed/Unchanged) × Feature × BRD tier. Reference T1 BRD Program — Consolidated Decisions The locked product decisions across the slate. Reference Two-Step Dose-Confirmation — Component Spec Shared dose-confirmation component (Hypo Shield / IOB / Onboarding depend on it).
